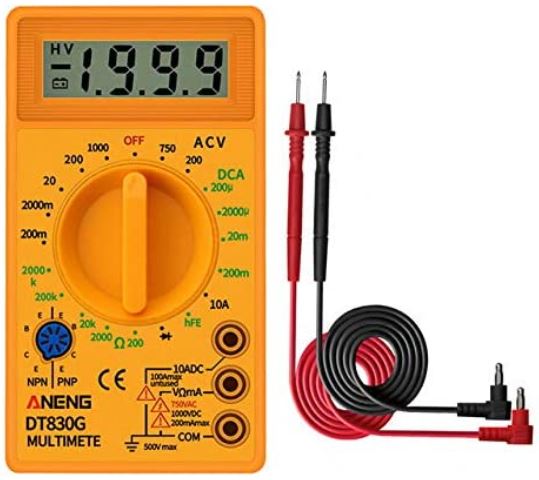

Digital Multimeter Voltmeter Ammeter Ohmmeter
Digital Multimeter Voltmeter Ammeter Ohmmeter
1. DISPLAY: 3½ digit LCD.
\r\n2. SWITCH\r\n2.1 FUNCTION and RANGE\r\nOur CMM adopt rotational switch which situated at the middle of the front case. It is used for the selection of FUNCTION and RANGE .\r\n2.2 POWER ON-OFF\r\nIn order to save energy, please turn the switch to “OFF” position when not in use.\r\n2.3 HOLD\r\nThe switch is used to hold the display reading when the instrument is disconnected from whatever was being measured.\r\n2.4 BACK LIGHT\r\n2.4.1 It will be automatically turned off in about 5 seconds after the BACK LIGHT is turned on. It needs to be turned on and turned on again to continue the switch.\r\n2.4.2 The BACK-LIGHT will be light when turn on the BLCTR switch. It needs to be turned off and turned on again to continue the switch.
\r\n3. “COM” jack ： Common jack.
\r\n4. ” VΩmA” jack\r\nVoltage, resistance, not more 200mA current, temperature and battery input test jack.
\r\n5. “10A”jack\r\nFor the input of more than 200mA current.
\r\nFEATURES
\r\n\r\n| Specifications | \r\nRange | \r\n\r\n Best Accuracy
| \r\n
| DC Voltage (V) | \r\n200mV/2/20/200/500V | \r\n±(0.8%+15) | \r\n
| AC Voltage (V) | \r\n200/500V | \r\n±(2.0%+10) | \r\n
| DC Current (A) | \r\n200µA/2mA/20mA/200mA/10A | \r\n±(1.8%+10) | \r\n
| Resistance (Ω) | \r\n200/2k/20k/200k/2MΩ | \r\n±(1.5%+10) | \r\n
| Display Count | \r\n1999 | \r\n√ | \r\n
| Diode | \r\n\r\n | \r\n√ | \r\n
| Dynatron | \r\n\r\n | \r\n√ | \r\n
| LCD Backlight | \r\n\r\n | \r\n√ | \r\n
| Continuity Buzzer | \r\n\r\n | \r\n√ | \r\n
| Input Impedance for DCV | \r\n1MΩ | \r\n√ | \r\n
| \r\n \r\n
\r\n \r\n\r\n \r\nSample Rate \r\n | \r\n3times/S | \r\n√ | \r\n
| Low Battery Indication | \r\n\r\n | \r\n√ | \r\n
| Data Hold | \r\n\r\n | \r\n√ | \r\n
| General Characteristics | \r\n\r\n | \r\n|
| Power | \r\n9V(6F22) | \r\n|
| LCD Size | \r\n40mm×21mm | \r\n|
| Product Net Weight | \r\n235g | \r\n|
| Product Size | \r\n138mm×70mm×31mm | \r\n|
| Standard Accessories | \r\nBattery， Temperature Probe | \r\n|
| Standard Individual Packing | \r\nGift Box, English Manual | \r\n|
| Standard Carton Measurement | \r\n52.5cm×31cm×31cm | \r\n|
| Standard Carton Cross Weight | \r\n15.1kg | \r\n
\r\nTECHNNICAL SPECIFICATION\r\nAccuracy: ±a% of reading: ± N0 digits promised for l year.\r\nEnvironmental temperature : 23℃±2℃.\r\nRelative Humidity: <75%.\r\n\r\nPACKAGE CONTENT\r\n1 x Digital Multimeter.\r\n2 x Test Leads.\r\n1 x English Manual.
